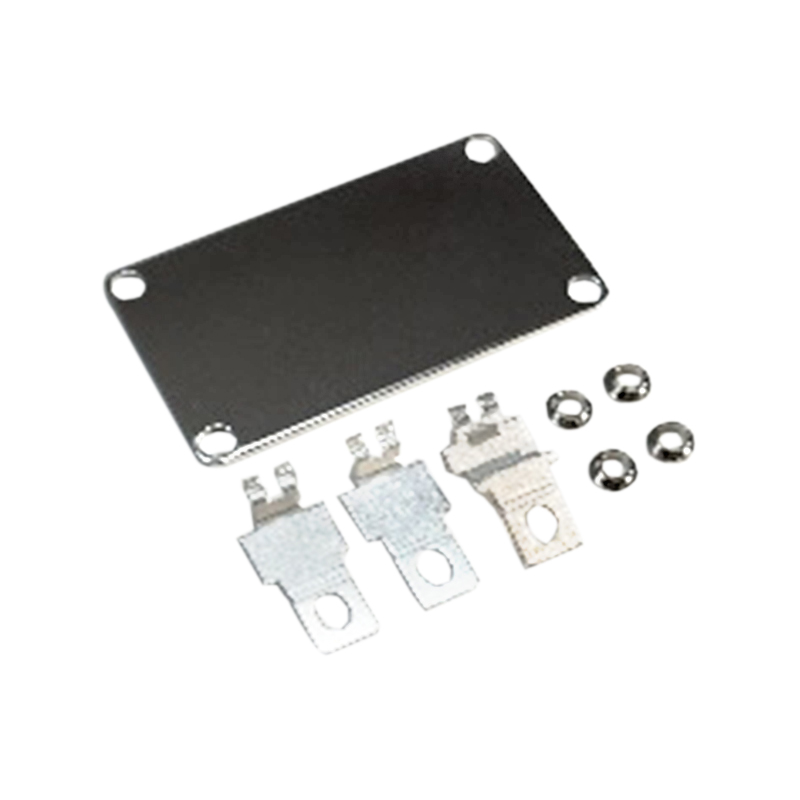

Tips For Selecting Custom Metal Stamping Parts For Projects

The material chosen for a stamped part tends to influence how the part performs in service quite a bit. A part that needs to resist corrosion generally calls for a different material than one that needs to withstand repeated bending. Material properties also tend to affect the manufacturing process itself. A harder material generally requires more force to stamp and may wear tooling down faster. A softer material tends to stamp fairly easily but may not offer the same strength.

Steel shows up frequently in stamping projects, largely because of its strength and general availability. Stainless steel tends to offer corrosion resistance for outdoor or harsh environments. Aluminium tends to provide lighter weight for applications where mass matters. Brass and copper offer electrical conductivity and corrosion resistance for certain specific uses. The material choice generally should reflect the actual requirements of the application.

A Custom Metal Stamping Parts project often starts with material selection, since other decisions tend to depend on it in some way. The tooling design generally needs to accommodate the material properties. The press selection needs to provide enough force for the job. The finishing process should suit the material being used. Getting the material right at the start tends to help avoid problems later on.

What Tolerances and Dimensions Should Be Specified?

Tolerances tend to determine how much variation a part can have while still functioning correctly. A part with tight tolerances tends to cost more to produce, since the stamping process needs to be controlled fairly precisely. A part with looser tolerances tends to cost less but may not fit as well within the assembly.

Critical dimensions are generally those that affect how the part fits with other components. Non-critical dimensions tend to be those that don't really affect fit or function much. Specifying tight tolerances on non-critical dimensions tends to add cost without adding much value. The design should probably distinguish between the two where possible.

Stamping operations tend to have some inherent variability built in. Material thickness varies slightly from batch to batch. The press may not close to exactly the same position every single time. Tooling tends to wear over time as well. Realistic tolerances generally account for this variability while still producing a functional part.

How Part Geometry Affects Stamping Feasibility

Some shapes tend to stamp fairly easily. A flat part with simple straight edges generally needs only a fairly simple tool. A part with sharp corners, deep draws, or complex bends tends to need more elaborate tooling. The geometry of the part tends to affect both the cost and feasibility of the stamping process.

Sharp corners tend to create stress concentrations in both the tooling and the part. A radius at the corner tends to reduce stress and improve tool life somewhat. Deep draws often require multiple stages and more complex tooling. Complex bends may need special features to hold the part steady during bending.

The part design tends to influence production speed and cost fairly directly. A simple part generally stamps quickly and can run on a single press. A more complex part may require multiple presses or progressive dies. The design should probably try to balance the requirements of the application against the constraints of the stamping process.

When stamping becomes impractical for a particular geometry, CNC Stainless Steel Parts may offer a reasonable alternative. Machining generally doesn't face the same geometric constraints as stamping, though it tends to cost more per part. The choice usually comes down to quantity and the complexity of the geometry involved.

What Surface Finish Requirements Are Needed?

Surface finish tends to serve both functional and aesthetic purposes. A functional finish might provide corrosion resistance, wear resistance, or improved adhesion for a subsequent coating. An aesthetic finish might provide a smoother, more attractive surface for visible parts.

The as-stamped finish leaves the part with whatever surface texture came from the stamping process itself. That texture may be perfectly acceptable for many applications. Deburring tends to remove sharp edges and improve handling. Plating tends to provide corrosion resistance along with a decorative finish. Powder coating tends to offer durability and a range of colour options.

Specifying the right finish generally requires understanding the application fairly well. A part that will be painted needs a clean surface that accepts paint properly. A part that gets handled frequently needs a smooth, comfortable surface. The finish should generally match the actual requirements of the application at hand.

How Production Volume Affects Tooling Investment

Tooling costs tend to represent a fairly significant expense in starting a stamping project. The tooling generally needs to be designed and built before any parts can actually be produced. The cost of that tooling gets spread across the number of parts produced over time. A higher volume tends to reduce the tooling cost per part. A lower volume tends to leave the tooling cost per part fairly high.

High-volume stamping tends to make sense for parts needed in large quantities, since the tooling cost becomes a fairly small part of the overall cost. Low-volume stamping may not always justify the tooling investment. Alternative processes like machining or laser cutting may end up being more economical for smaller quantities.

The quality of the tooling tends to affect production speed and part quality quite a bit. A well-built tool tends to produce fairly consistent parts at good speed. A poorly built tool tends to produce inconsistent parts and can cause production delays. The table below compares tooling considerations across different production volumes.

The right approach tends to depend less on any single factor and more on how volume, part complexity, and budget line up together for a given project.

What Role Does a Custom Metal Stamping Parts Supplier Play in Design?

A good supplier tends to do more than just take orders and ship parts out the door. The supplier's engineers generally look at the part design and try to spot where problems might come up. A feature that looks fine on a drawing may turn out fairly difficult or expensive to stamp in practice. The supplier can often suggest changes that make the part somewhat easier to produce.

Getting the supplier involved early tends to help avoid costly design issues down the line. A change to the part design generally costs very little before the tooling gets built. That same change tends to cost meaningfully more time and money once the tooling already exists. Design-for-manufacturability feedback from the supplier tends to add real value at this stage.

The supplier's experience with similar parts tends to offer useful insight too. A supplier who has stamped a good number of comparable parts generally has a sense of what tends to work and what doesn't. The supplier can often recommend material grades, tolerances, and finishing options that have worked reasonably well in similar applications before.

How Quality Control Protects the Finished Product

Quality control tends to work better when it starts during production rather than only after the fact. In-process inspection tends to catch issues while the press is still running. A part that's drifting out of tolerance can often be corrected before a whole batch ends up scrapped. Inspection generally should happen at fairly regular intervals throughout the run.

Dimensional verification tends to help confirm that parts meet the specifications. The supplier typically uses gauges, fixtures, and measurement equipment to check critical dimensions. This verification tends to give a reasonable level of confidence that the parts will fit properly in the assembly.

Documentation of quality throughout production tends to serve a few purposes. The records tend to show that the supplier followed the agreed process. They also tend to provide traceability if a problem shows up later. A dependable supplier generally maintains records that can be reviewed when needed.

What Help Time and Delivery Considerations Exist?

Tooling fabrication tends to take a fair amount of time. A simple tool may be ready in a few weeks. A more complex progressive die may take several months to complete. The project timeline should probably account for this tooling fabrication period from the start.

Part complexity tends to affect production help time as well. A simple part generally stamps quickly and ships fairly soon after tooling is ready. A more complex part tends to take longer to run, since the press may run slower or additional operations might be needed. help time is usually worth establishing before the project even gets underway.

Sample approval typically comes before full production begins. The supplier runs a small batch of parts for the customer to inspect. These samples tend to help confirm that the part meets specifications. Any issues found at this stage can generally be corrected before the full production run kicks off.

Why Communication with the Supplier Shapes Project Success

Clear specifications and drawings tend to prevent a lot of misunderstandings down the road. The design intent should be communicated as clearly as possible. Tolerances should be specified fairly explicitly. Finishing requirements should be described in reasonable detail. Ambiguity in the specifications tends to help to delays and added costs more often than not.

A few points worth keeping in mind when communicating with the supplier:

• Provide complete and accurate drawings
• Specify all critical dimensions and tolerances
• Describe the intended application and service conditions
• Confirm the material grade and finish requirements

Regular updates during the tooling and production phases tend to help keep the project on track. The supplier should generally provide progress reports along the way. The customer should feel free to ask questions whenever something feels unclear. A working relationship built around problem-solving tends to make the whole project go a bit more smoothly.

How to Evaluate a Custom Metal Stamping Parts Supplier Before Committing

A visit to the supplier's facility tends to reveal quite a bit. The condition of the presses and tooling tends to say something about the supplier's general approach to maintenance and quality. A clean, organized shop with reasonably well-maintained equipment tends to suggest a fairly professional operation. A cluttered shop with worn equipment may raise a few concerns worth looking into further.

Questions about experience and capabilities tend to matter here. How long has the supplier been in business? What types of parts does the supplier typically specialize in? Has the supplier worked with similar materials and tolerances before? The answers to these questions tend to give a reasonable basis for evaluation.

References and examples of past work tend to offer some proof of capability. A supplier who has produced similar parts for other customers before is fairly likely to handle a comparable project well. A dependable supplier should generally be willing to share references and samples of past work.

A few signs that tend to point toward a reliable partner for stamping projects:

• The facility is clean and reasonably well-organized
• The presses and tooling appear to be in good condition
• The staff seems knowledgeable about stamping processes
• The supplier asks questions about the application
• The supplier provides fairly realistic timelines and cost estimates

The evaluation process is generally worth taking seriously, since the choice of supplier tends to influence how the project turns out. A dependable supplier tends to produce parts that meet specifications on time and within budget. A supplier that isn't quite the right fit can end up causing delays, quality issues, and a fair amount of frustration. Taking the time to evaluate suppliers carefully before committing tends to help to smoother outcomes overall.
