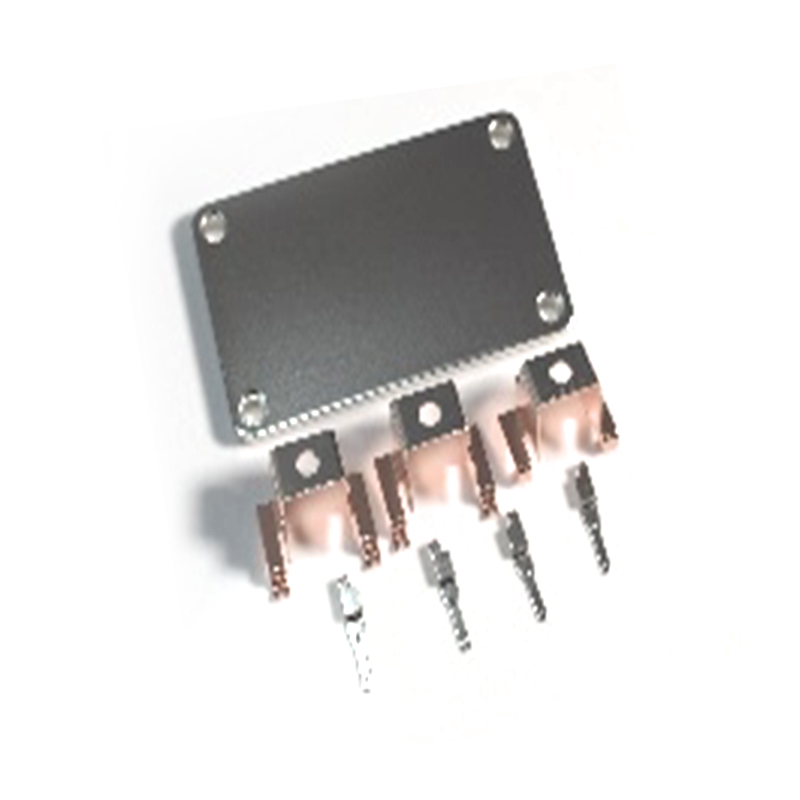

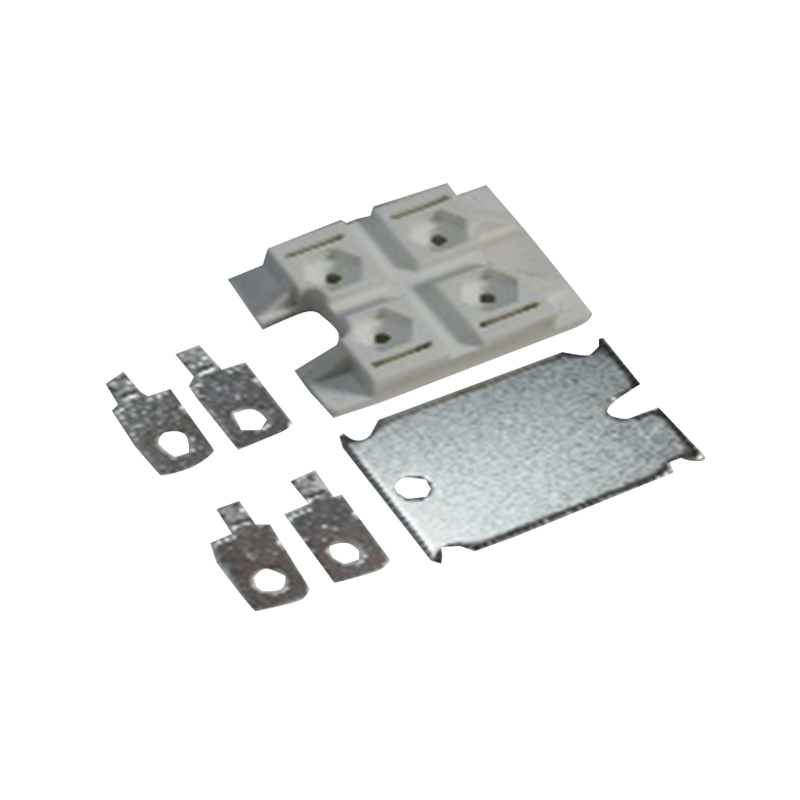

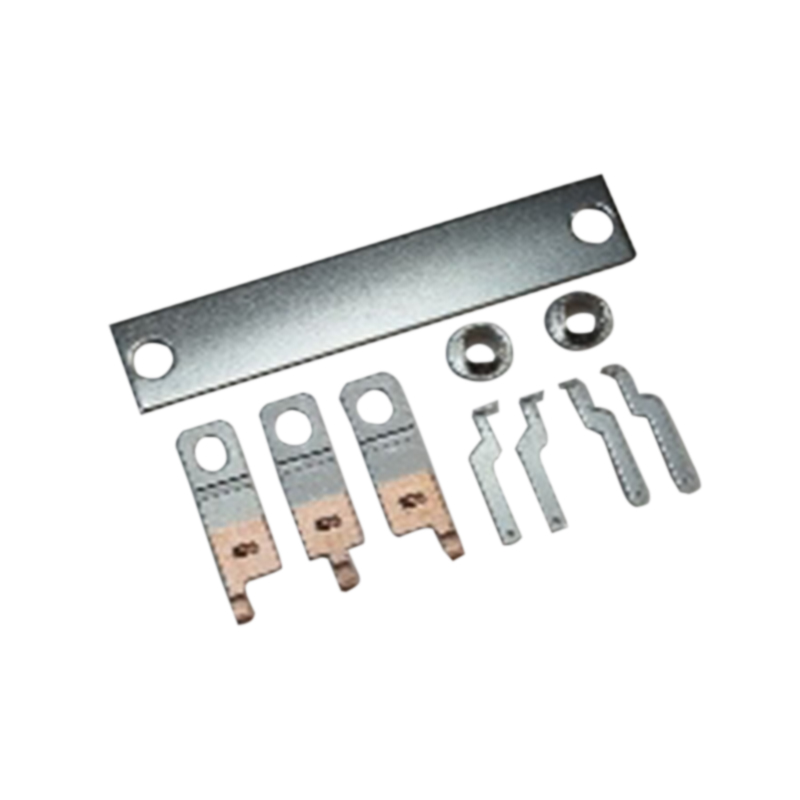

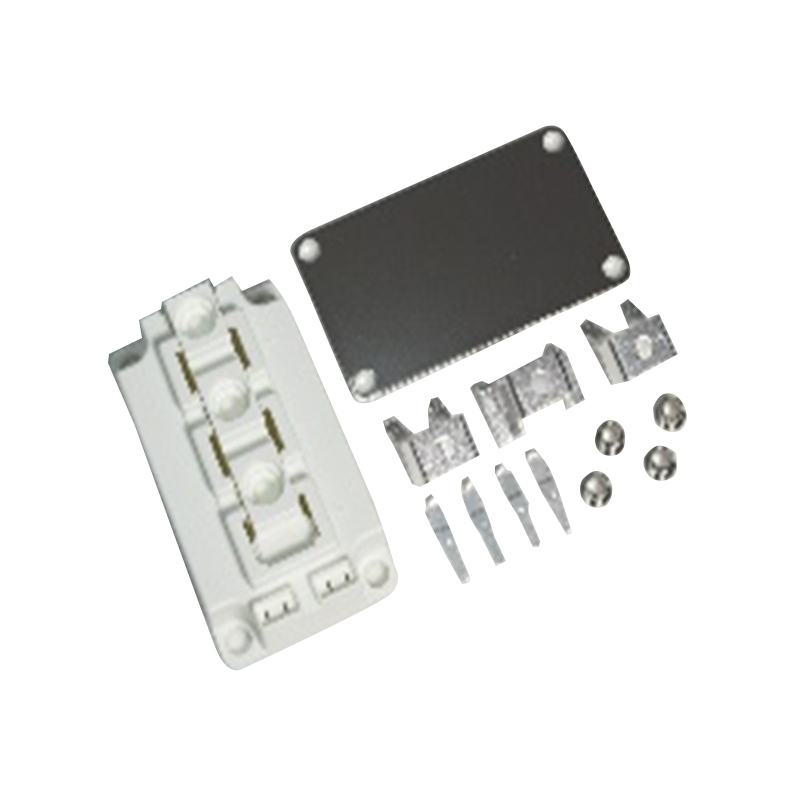

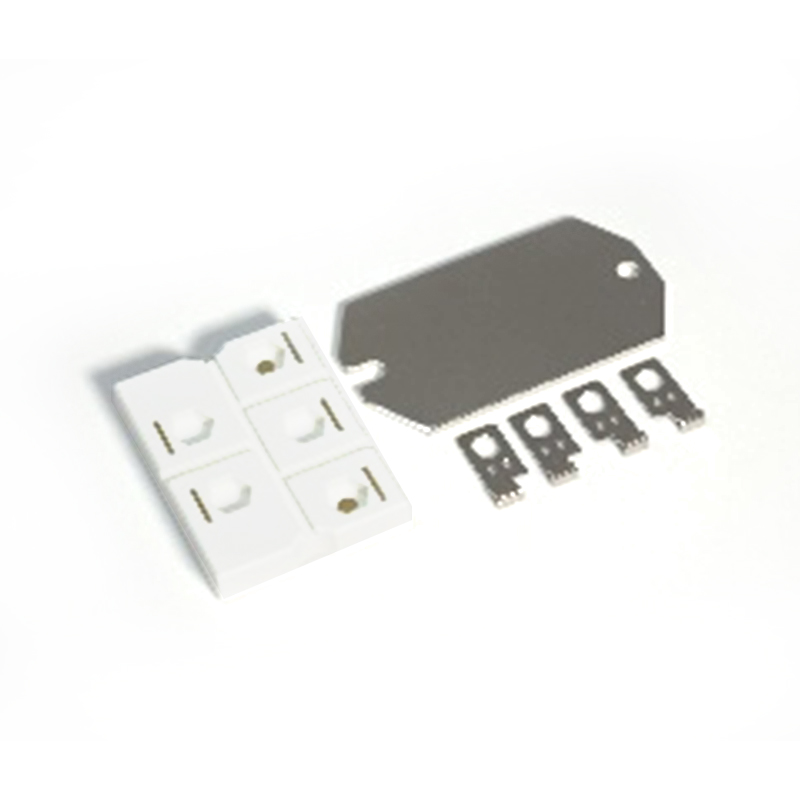

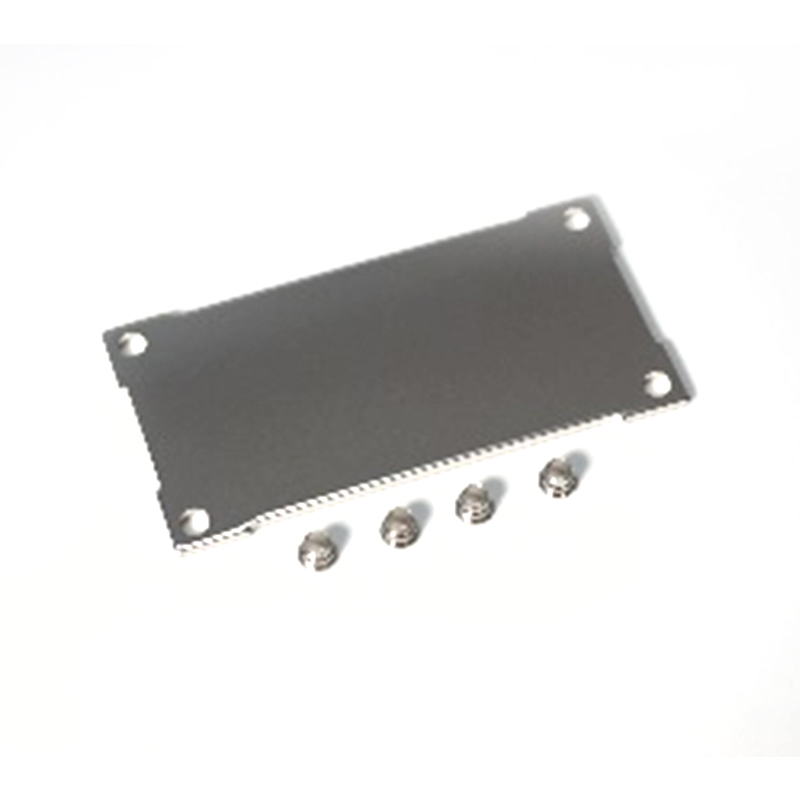

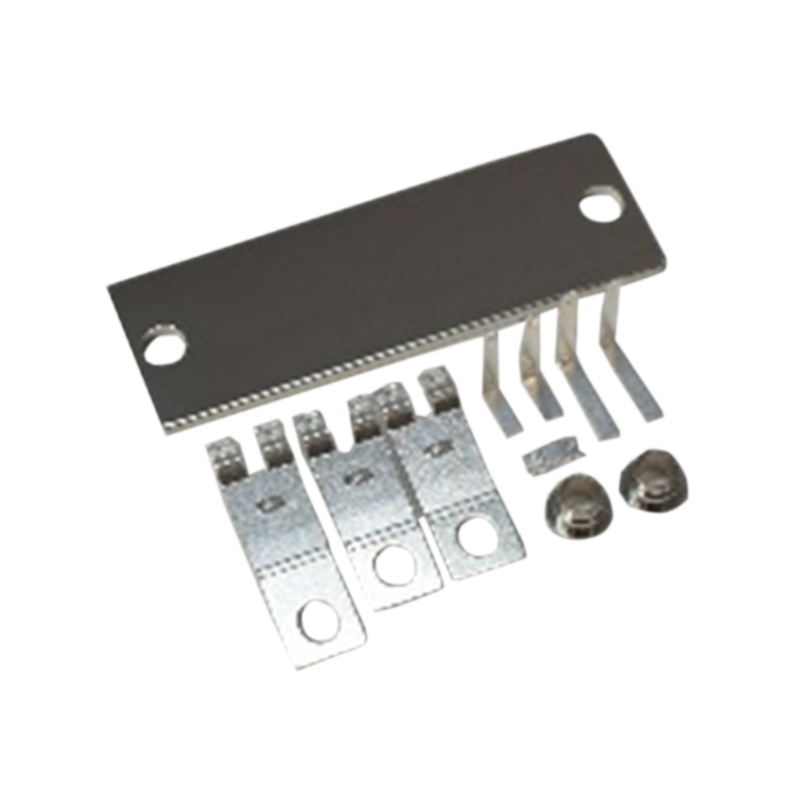

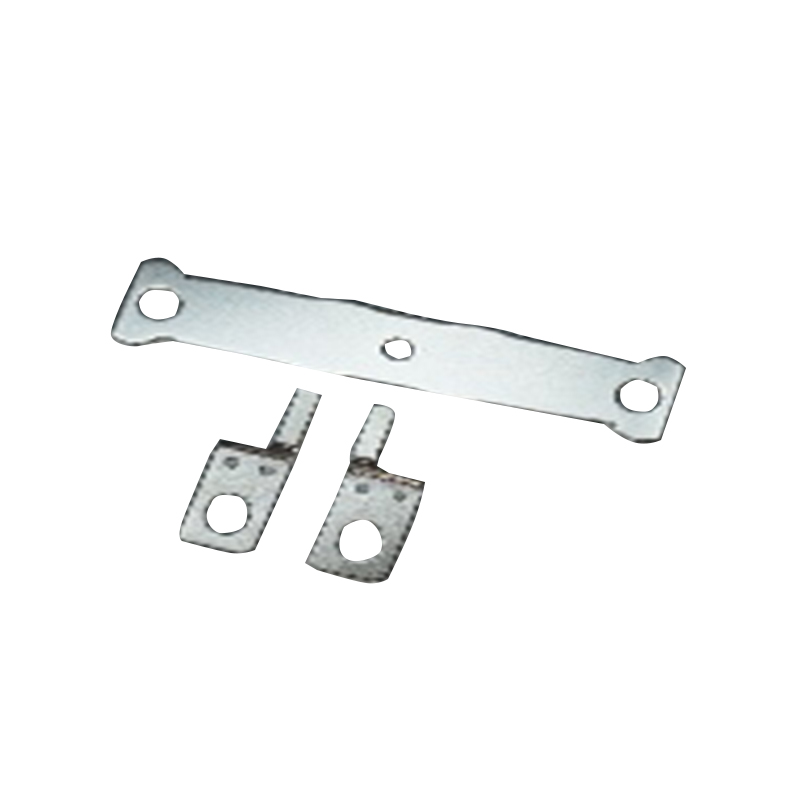

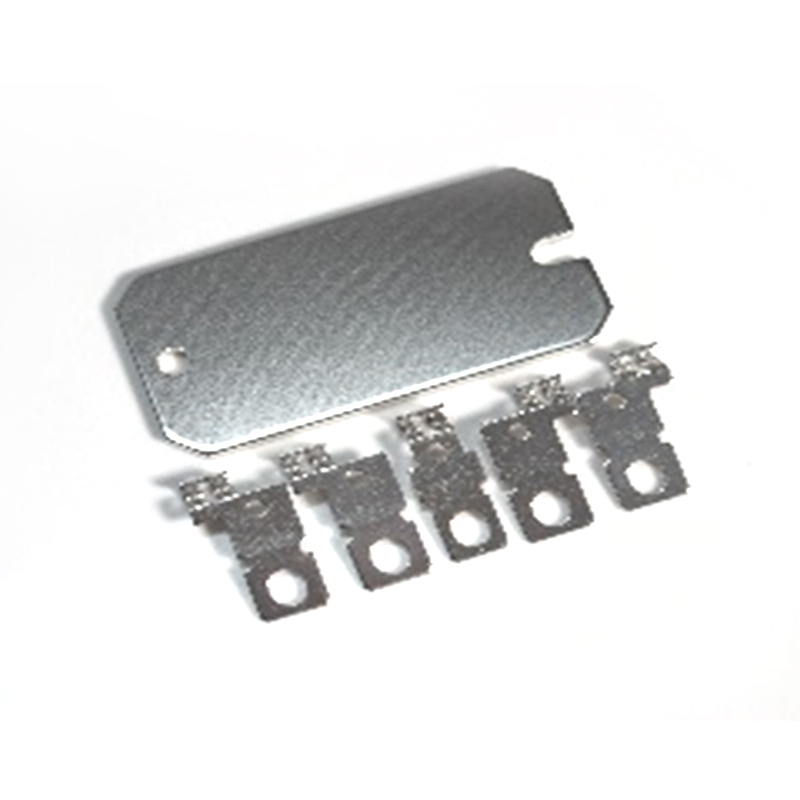

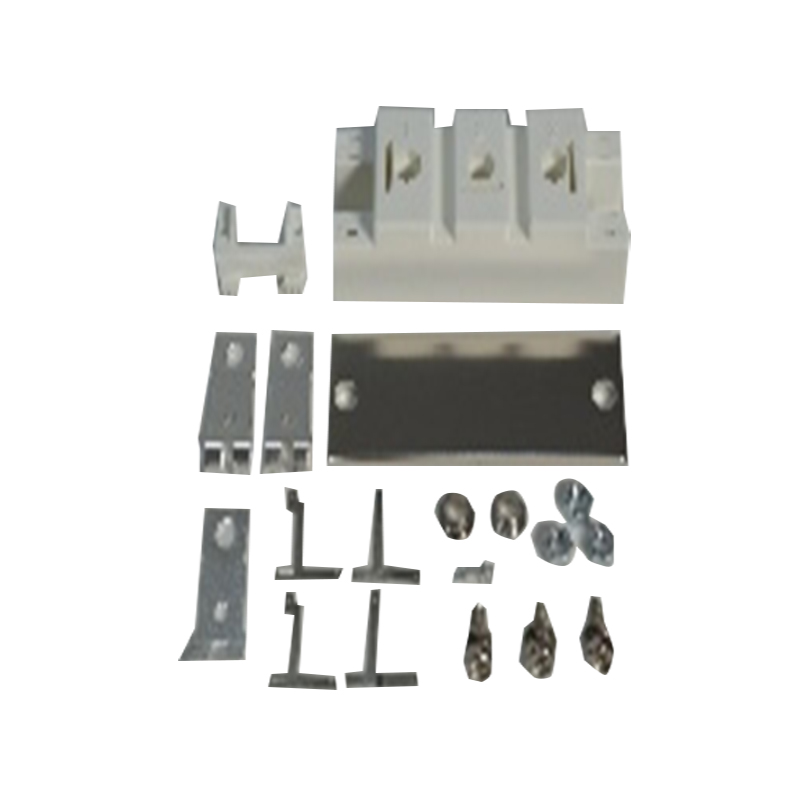

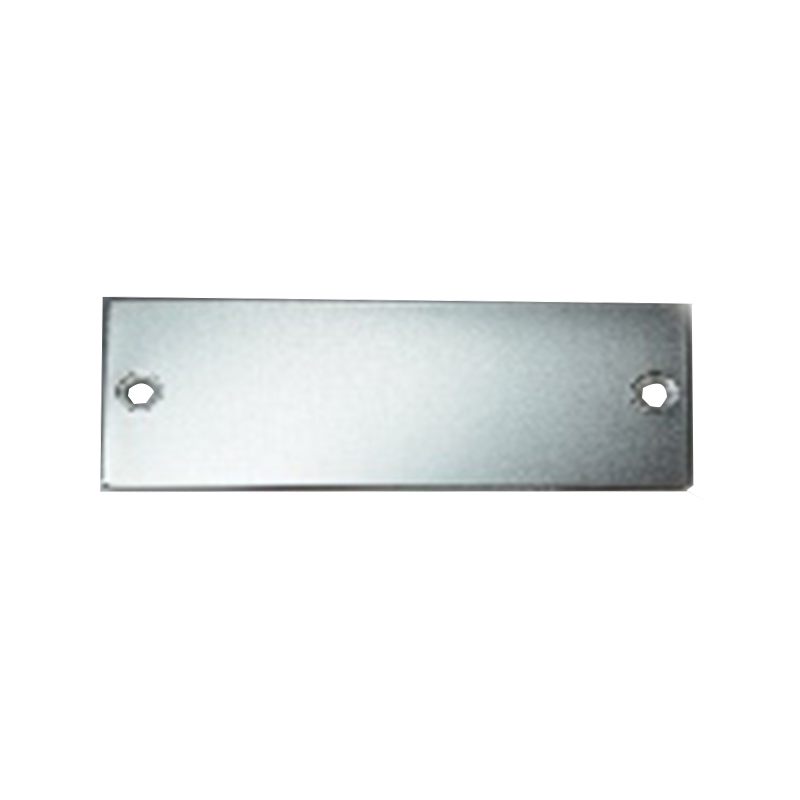

China IGBT Semiconductor Module Accessories
IGBT Module is a modular electronic component that integrates multiple IGBT chips, drive systems, protection circuits and other functions. The IGBT module not only inherits the high input impedance of MOSFET but also incorporates the low conduction voltage drop and small current saturation of BJT. capabilities and therefore exhibit performance in power electronic systems. The working principle of the IGBT module involves the conduction process of NPT-IGBT (Non-Punch Through IGBT), in which when the gate threshold voltage (VGE) is greater than a specific value, a conduction state is formed in the channel, allowing current to flow. This design combines the high input impedance of the MOSFET with the low on-state voltage drop of the BJT to provide fast and low-loss switching operation.
IGBT modules are widely used, including but not limited to inverter air conditioners, electric vehicles, PUS systems, solar power generation, etc. They play a key role in these applications, improving system stability, reliability and efficiency. In addition, IGBT modules also have the characteristics of energy saving, easy installation and maintenance, and stable heat dissipation, and are one of the common modular products on the market.
About Ruizan
Yongkang Ruizan Industry and Trade Co., Ltd.
As OEM/ODM IGBT Semiconductor Module Accessories suppliers and IGBT Semiconductor Module Accessories factory, we are mainly engaged in custom IGBT Semiconductor Module Accessories, It has hardware stamping equipment, dozens of 16-250T punch machines and 100-315 ton presses, a large gantry processing center, automatic pipe cutting machines, and automatic pipe shrinking machines. Pipe bending machines and OTC welding manipulators can undertake the stamping, forming, and finishing of various metal parts, as well as the processing, production, and welding of pipe products. We can provide customers with product design consultation, proofing, mold opening, production, and other services.
News Center
IGBT Semiconductor Module Accessories Industry Knowledge Extension
IGBT Semiconductor Module Accessories
Insulated Gate Bipolar Transistor (IGBT) semiconductor module accessories play a crucial role in enhancing the functionality and performance of IGBT modules. These accessories include various components such as drivers, sensors, and connectors that are essential for the efficient operation of IGBT modules in various applications. Drivers are critical as they provide the necessary signals to the IGBT to switch on and off, enabling the module to control large electrical currents. Sensors, on the other hand, monitor various parameters such as temperature and current, ensuring the module operates within safe limits. Connectors provide the necessary electrical connections between the IGBT module and other parts of the system, ensuring reliable and efficient power transmission.
Additionally, thermal management accessories such as heat sinks and thermal pads are vital in dissipating heat generated during the operation of IGBT modules. Proper thermal management is crucial to maintain the reliability and longevity of the IGBT modules. The selection of appropriate IGBT semiconductor module accessories is essential for optimizing the performance and efficiency of power electronic systems, making them a key component in applications ranging from industrial motor drives to renewable energy systems.
IGBT Module
An IGBT module, or Insulated Gate Bipolar Transistor module, is a crucial component in modern power electronics, combining the high-efficiency and fast-switching features of a Metal-Oxide-Semiconductor Field-Effect Transistor (MOSFET) with the high-current and low-saturation-voltage capability of a bipolar transistor. This unique combination makes IGBT modules ideal for a wide range of applications, including motor drives, inverters, and power supply systems. The core function of an IGBT module is to switch electrical power on and off rapidly and efficiently, thereby controlling the flow of electrical energy in various systems.
IGBT modules are designed to handle high voltages and currents, making them suitable for high-power applications. They are commonly used in industrial applications, renewable energy systems such as solar and wind power, and electric vehicles. The ability of IGBT modules to switch at high frequencies allows for more compact and efficient power conversion systems. Moreover, advancements in IGBT module technology have led to improved efficiency, reduced power losses, and enhanced reliability, making them an indispensable component in modern power electronics.
Semiconductor Module
Semiconductor modules encompass a broad range of devices that utilize semiconductor materials to perform various electronic functions. These modules include diodes, transistors, thyristors, and more complex devices such as IGBT modules and power-integrated circuits. Semiconductor modules are the building blocks of modern electronic systems, enabling the control and conversion of electrical energy in a wide range of applications. From consumer electronics and industrial machinery to automotive systems and renewable energy solutions, semiconductor modules are integral to the operation of countless devices and systems.
One of the key advantages of semiconductor modules is their ability to provide precise control over electrical currents and voltages. This precision is essential for the efficient operation of electronic systems, reducing power consumption and enhancing overall system performance. Semiconductor modules are designed to operate under various environmental conditions, making them suitable for use in harsh industrial environments and critical applications where reliability is paramount. With continuous advancements in semiconductor technology, these modules are becoming more efficient, compact, and cost-effective, driving innovation and enabling new applications across different industries.
In summary, IGBT semiconductor module accessories, IGBT modules, and semiconductor modules each play a vital role in the realm of power electronics and beyond. IGBT semiconductor module accessories enhance the functionality and reliability of IGBT modules, ensuring efficient operation in various applications. IGBT modules themselves are essential for high-power applications, providing efficient switching and power control capabilities. Semiconductor modules, encompassing a wide range of devices, are the fundamental building blocks of modern electronic systems, enabling precise control and efficient operation across diverse applications. These components collectively contribute to the advancement of technology, driving innovation and enabling new possibilities in numerous industries.
Yongkang Ruizan Industry and Trade Co., Ltd.
A company specializing in metal stamping and mold design and manufacturing.
